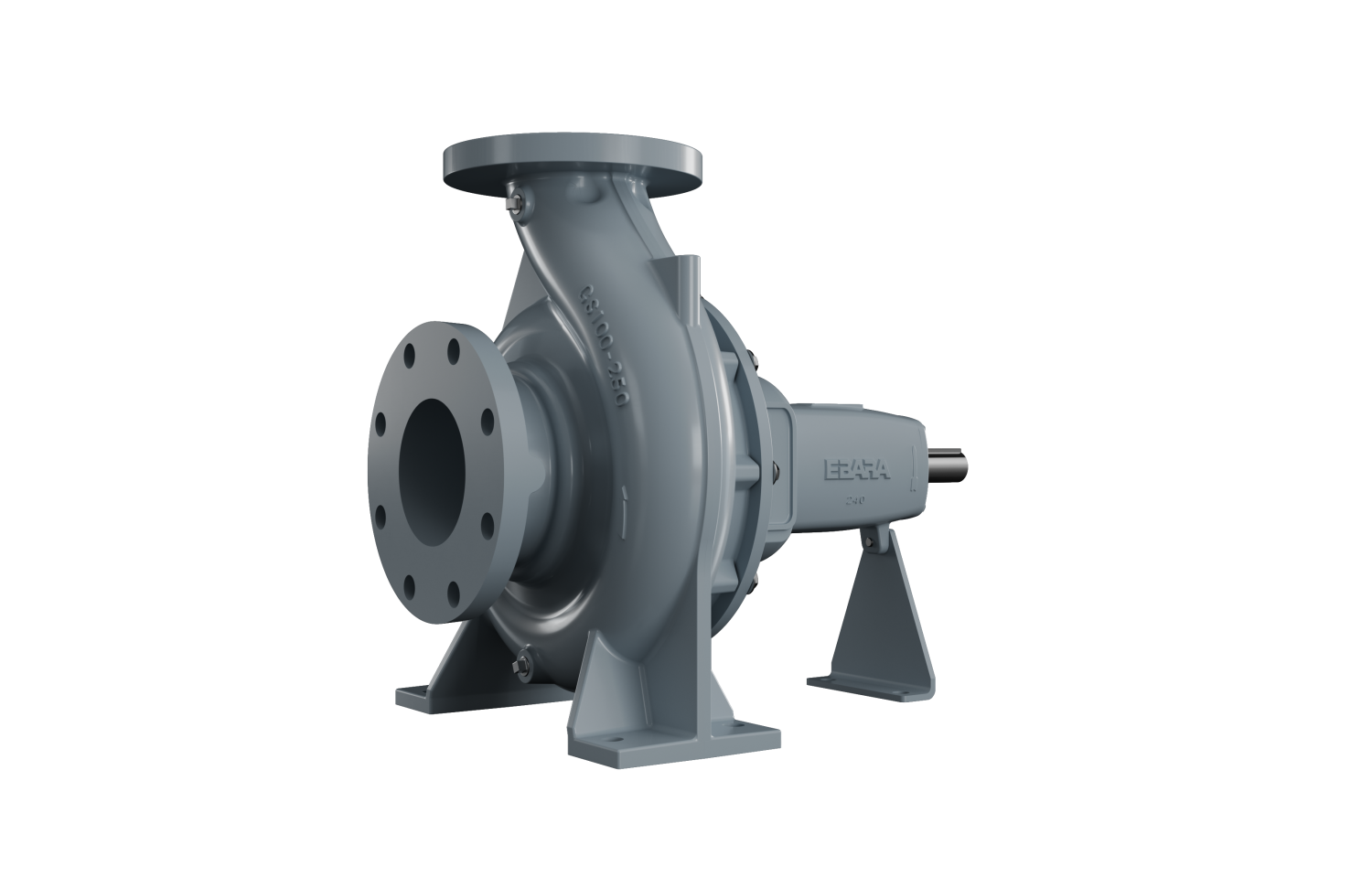

GS Series
/ Surface
Key Features
Energy Saving
- Impellers designed using EBARA proprietary 3D inverse design technology
- New higher efficiency design to lower energy consumption and motor output
Simple Maintenance
- Simplified bearings and shaft seal enable assembly and easy maintenance
- Frame Mounted Pump Design
- Back pullout construction with integral foot mounted casing enables disassembly and inspection without removal of suction and discharge piping
- Shielded bearings eliminate need for adding or exchanging lubrication oil
- Top centerline discharge and tapered bore seal changers ensures self-venting
Type: End Suction / Surface
Market: Municipal Clean Water / Commercial / Industrial
Specifications
- Discharge Size: up to 5″
- Power Range: up to 200 hp
- Capacity: up to 3000 gpm (60Hz)
- Head: up to 490 ft (60Hz)
- Liquid temperature range: 14°F to 212°F
- Maximum working pressure: 200 psi
- ANSI B16.1 125lb flanges
Documentation & Downloads
- Product Brochure
- Technical Specifications
- Technical Data
- Curves
- Dimensions
- Parts Reference
- IOM
- Service Parts
- All CAD Drawings can be found in the Document Library within e-Select.
Additional Information
Applications
- Water Supply
- Drainage
- Irrigation
- Air Conditioning
- Building Installations
- Condensate Circulations
- Cooling Services
- General Industries
- Transfer Pump
- Booster Pump
